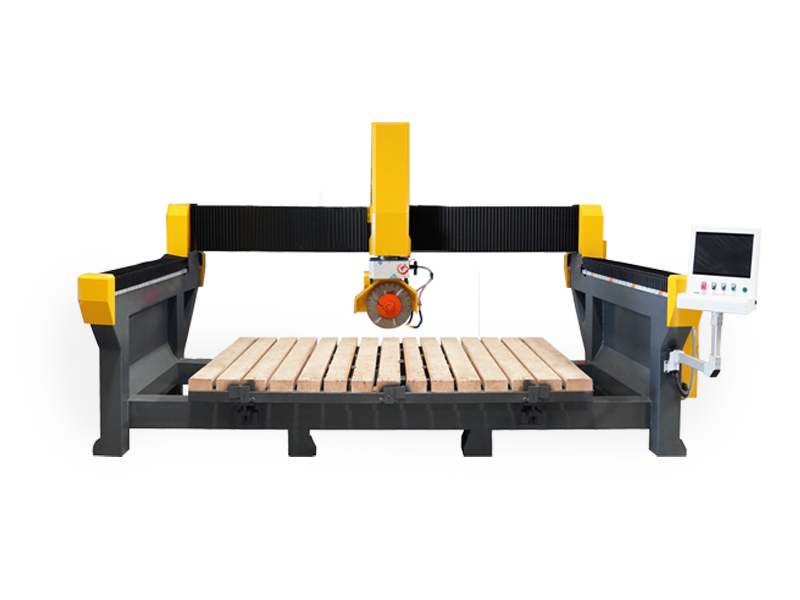

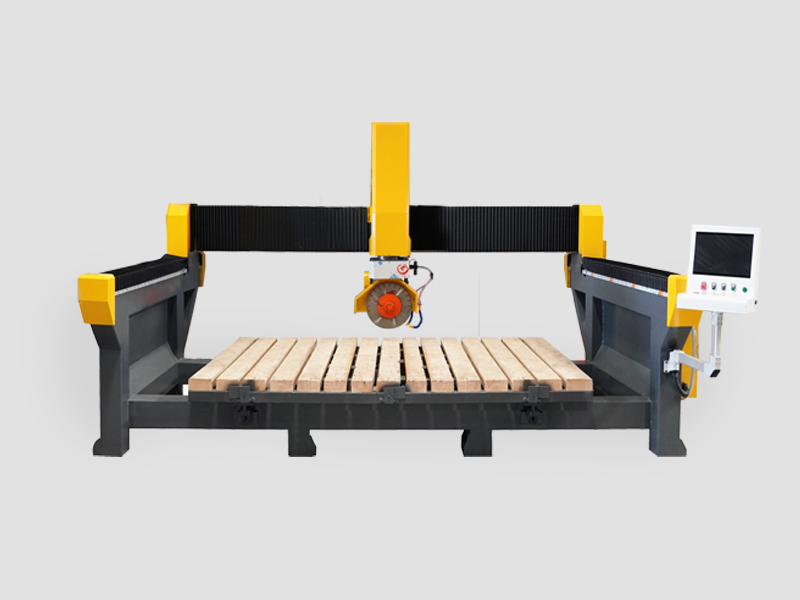

Horizontal cutting, vertical cutting, chamfering 45 degree cutting, circular, diamond, fan-shaped, various irregular cutting, supporting rangefinder, CAD drawing import, supporting G code.The machine is with tabletop flip function.
|
Model |
3220 stone cnc cutting machine |
|
Table Area |
3200*2000MM |
|
Working Area |
3200*2000*300MM |
|
Travel speed |
15000MM |
|
Working speed |
10000MM(according different material) |
|
Whole machine weight |
3T |
|
Equipment architecture |
Thickened and widened heavy-duty bed, sandblasted, annealed to remove hardness, and processed in one go for the gantry, with minimal deformation, stable structure, high accuracy, smooth operation, and fast speed. |
|
Saw’s spindle |
Big power 15KW/380VS tone specific saw blade motor |
|
Voltage |
380V-50HZ |
|
Driver system |
X Y axis：chinese servo motor and driver Z axis：chinese servo motor and driver |
|
Reducer |
High precision planetary reducer |
|
Rack and pinion shaft |
High precision 1.5 hardened gear racks and shafts |
|
Guide rail slider |
30 linear square rails+high-precision matching sliders |
|
Ballscrew |
The lead screw adopts Taiwan TBI original ball screw |
|
Table flipping function |
Equipped with a double rod oil cylinder oil pump device, it can flip the plate up to 85 degrees, making it convenient for loading materials |
|
Controller |
Professional controller of marble sawing,chinese or english language(support CAD file) |
|
Mesa structure |
Thickened high-strength square tube+high hardness wear-resistant thickened wooden square |
|
Electrical accessories |
CHNT and Schneider low-voltage electrical accessories |
|
Wire and cable |
High flexibility, high speed, shielding, anti-interference wires and cables, anti breaking, power lines, signal lines, oil and gas lines |
|
Oil injection system |
Electric oil injection system |
|
Operation screen |
Aviation aluminum alloy rocker arm operation screen |
|
Fixings |
The transmission is fixed with 12.9 grade high-strength screws, and the sheet metal is made of stainless steel screws or galvanized |
|
Dust proof structure |
Three axis dustproof and waterproof structure |
|
Working funtion |
Processing area of 3.2 meters X 2 meters, 15 kilowatts, horizontal cutting, vertical cutting, chamfering 45 degree cutting, circular, diamond, fan-shaped, various irregular cutting, supporting rangefinder, CAD drawing import, supporting G code. The machine has a tabletop flip function. |
|
Machine size |
5670X3200X2450MM |
|
Package size |
5700X2300X2500MM |
